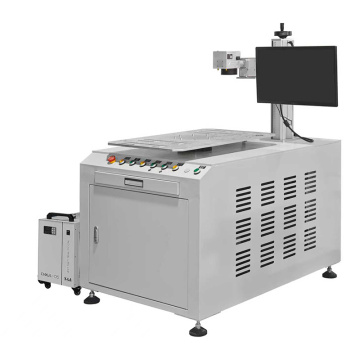

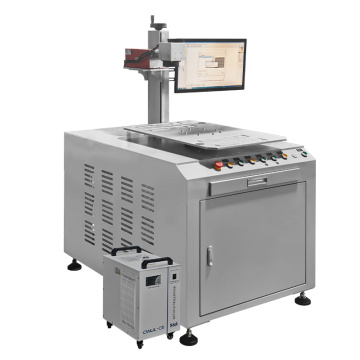

Dual Station Rotary UV Laser Marking Machine

This dual-station rotary table UV Laser Marking Machine was customized to meet customer needs. It's used to mark logos on circular white fan panels and the functions of knobs and buttons on control panels. Previously, the customer used two standard UV Laser Marking Machines, using a custom positioning plate and manual alignment to ensure accurate marking position and angle. However, manual installation of the three screw holes on the lower edge of the circular panels was inefficient. After in-depth discussions with the customer about upgrading to automation, they ultimately opted for a rotary table. The positioning holes, custom-designed according to the customer's drawings, allow for simultaneous compatibility with both panels. Furthermore, semi-automated marking can be achieved by pressing a foot switch after batch placement. This allows a single operator to achieve higher production efficiency than the previous two-person approach.

?

?

From core Marking Machine and Laser Cleaning Machine to professional Accessories And Consumables, we offer a total solution for your industrial laser needs.

?

?

Laser Type	DPSS UV
Laser Brand	Coherent, JPT, Huaray, GZTech, INNO or customize
Laser Power	3W	5W	10W	15W	20W	30W
Work Area	70 * 70mm, 90 * 90mm, 110 * 110mm, 150 * 150mm, 155 * 155mm, 175 * 175mm, 200 * 200mm, 220 * 220mm, 250 * 250mm, 300 * 300mm
Laser Wavelength	355nm
Pulse Duration	< 15ns @ 60kHz
Pulse Frequency	20 ~ 200kHz
Beam Quality (BBP)	≤ 1.2㎡
Positioning Speed	8000 ~ 23000mm/s
Scanning Speed	5000 ~ 12000mm/s
Writing Speed	450 ~ 600cps
Repeat Accuracy	± 0.002mm
Laser Lifespan	≥ 20,000hrs
Cooling Method	Water cooling
Power Input	100 ~ 240VAC @ 50 / 60 Hz
Operation Temperature:	10 ~ 40℃ or 50 ~ 104℉
Storage Temperature:	-10 ~ 60℃ or 14 ~ 140℉
Relative Humidity:?	5 ~ 75%, no condensation

?

?

?	Desktop integrated	Desktop split	Desktop
Dimension	550 * 430 * 780mm & 560 * 285 * 460mm	350 * 600 * 600mm & 380 * 215 * 455mm & 560 * 285 * 460mm	800 * 650 * 1450mm & 560 * 285 * 460mm
N.W.	43kg	50kg	86kg
Packaging Dimension	900 * 570 * 530mm & 650 * 360 * 560mm	900 * 570 * 530mm & 650 * 360 * 560mm	950 * 800 * 1250mm & 650 * 360 * 560mm
G.W.	72kg	79kg	145kg

?

?

MOQ	1
Configuration	Price
3W	2480
5W	2600
10W	4880
15W	8070
20W	10635
30W	18000

?
